Rockford Fosgate

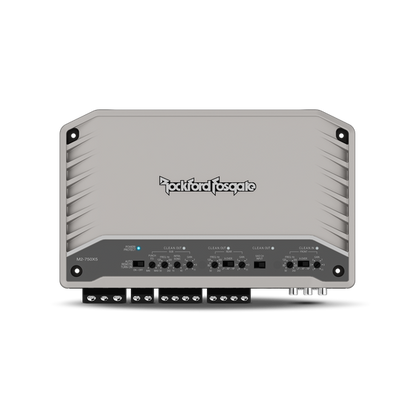

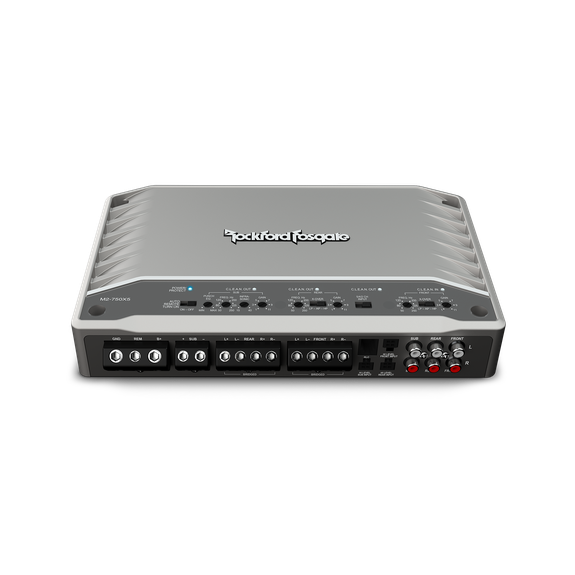

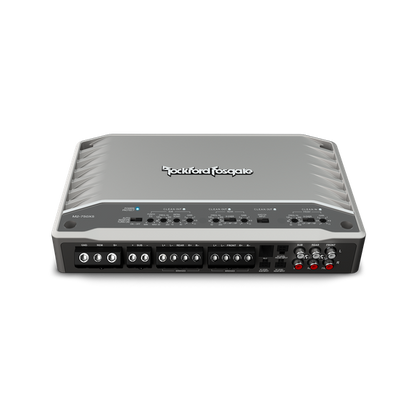

M2 750 Watt 5-Channel Element Ready™ Amplifier

M2 750 Watt 5-Channel Element Ready™ Amplifier

Regular price $519.99
Regular price Sale price $519.99
Sale Sold out
Shipping calculated at checkout.

The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. It’s designed for those who want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.



FEATURES AT A GLANCE

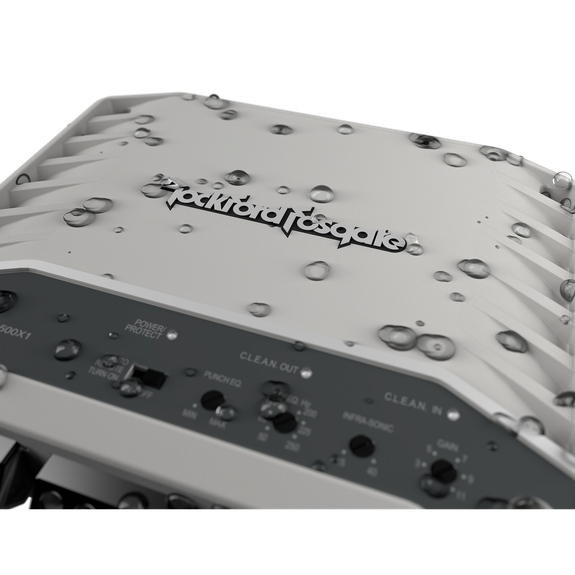

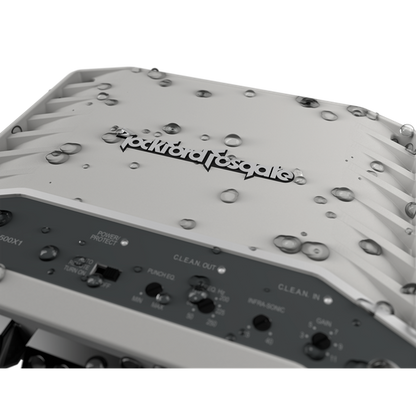

  • Element Ready™ design protects against outdoor exposure
  • Zinc Nickel-plated Marine grade brass connection terminals
  • UV stable powder coated cast aluminum heatsink
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Conformal coated circuit board protects against dust and water
  • Optimized using AudioGraph PowerCube measurement tool
  • Includes RLC Remote Level Control
  • Continuously Variable On Board Punch EQ

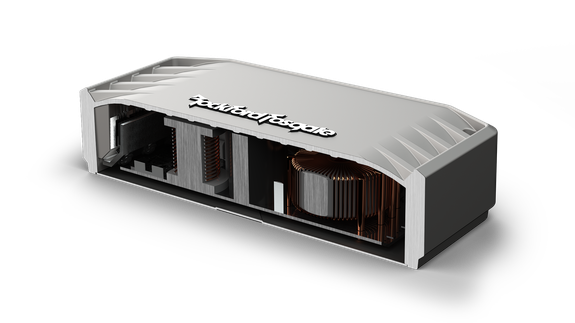

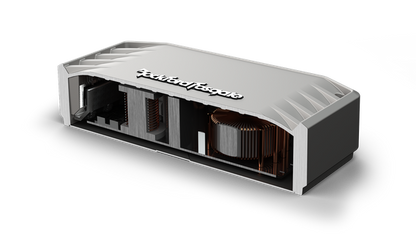

  • Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

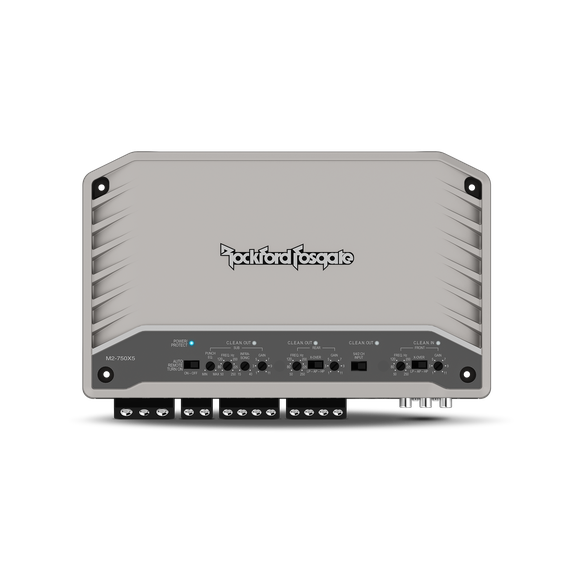

  • Top Mounted Control Panel
  • 2/4/5 Channel Input Selection Switch
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Short Circuit & Over Current Protection
  • Variable Infrasonic Filter

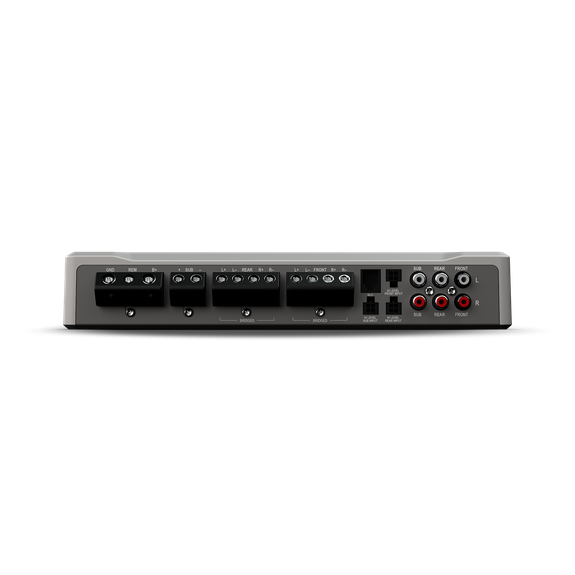

  • Integrated Power and Speaker Terminals
  • Balanced Differential Inputs eliminates noise picked up by signal cables
  • Integration with OEM and Aftermarket Radios
  • "Auto-Sense" turn-on with remote out (high level in)
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Low Impedance Stability
  • Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)
  • CEA-2006 Compliant & CE Compliant
  • Rollback Protection
  • 2-Year Warranty
Cta-2006 Compliant

Number of Channels
5
Total Power
(Sum of Rated Power)
750 Watts
Rated Power
(RMS Continuous Power)
50 Watts x 4 + 200 Watts x 1 @ 4Ω
100 Watts x 4 + 350 Watts x 1 @ 2Ω
200 Watts x 2 + N/A @ 4Ω Bridged/Mono
Dynamic Power
(PVC/PowerCube®)
70 Watts x 4 + 241 Watts x 1 @ 4Ω
114 Watts x 4 + 426 Watts x 1 @ 2Ω
234 Watts x 2 + N/A @ 4Ω Bridged/Mono
Bridgeable
Yes
Frequency Response
20 Hz - 20 kHz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class D
Efficiency (average)

Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%
Signal Input
Front Low-Level: 2 RCA
Front High-Level: 4-Pin Molex
Rear Low-Level: 2 RCA
Rear High-Level: 4-Pin Molex
Sub Low-Level: 2 RCA
Sub High-Level: 4-Pin Molex
Signal Output
N/A
Tone Controls
0 to +18 dB @ 45 Hz
Crossover Controls
Front High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Front Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls
Yes
Visual Indicators
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out (front)
C.L.E.A.N. Out (rear)
C.L.E.A.N. Out (sub)
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink

Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
120 A
Average Current Draw (13.8V Music)

Max. Current Draw (13.8V Sinewave)
71 A
Suggested Alternator

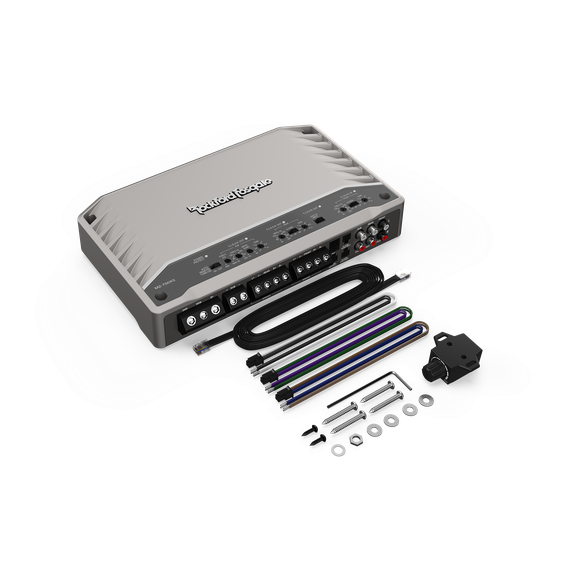

Included In The Box

Dimensions (H x W x D)
1.9" x 6.8" x 11.2"
(4.9 cm x 17.3 cm x 28.5 cm)
Shipping Weight
6.13 Lbs. (2.78 Kg)
